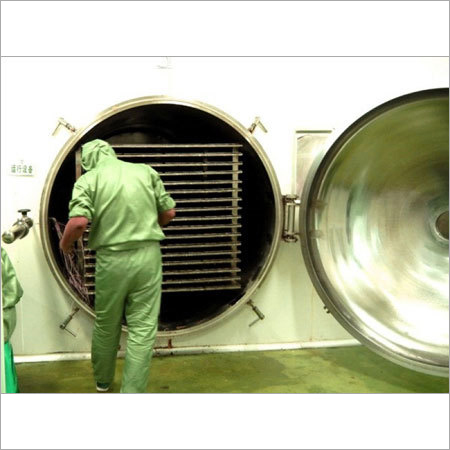

500kg Production Freeze Dryer

500kg Production Freeze Dryer

350000.00 INR/Set

Product Details:

X

Price And Quantity

  • 1 Set
  • 350000.00 INR/Set

Trade Information

  • 10 Set Per Month
  • 1 Week

Product Description

500kg Batch Freeze Dryer

Technical parameters of freeze dryer :

Model

EBT-500

Type

Radiant type with individual quick freezer

Ice Capacity (kg)

500kg in a 24hr period (vapor condenser capacity)

Vapor Condenser Temperature ()

-45 (option: -60)

Usable Shelf Area (m2)

50.11 m2

Number of Shelves

18+1, the top plate provides radiant heat only

Shelf Dimension (mm)

2320*(600*2)mm (thickness: 15mm) aluminum

Shelf Spacing (mm)

60-80mm

Shelf Temperature ()

Room temperature to 110(max.)

IQF Cooling Rate (+40 to 25)

60 minutes

Shelf Heating Rate (/min) (approx.)

1/min, By electricity or steam

Heating/cooling medium

Silicone oil or mixing liquid

Heating/cooling exchange

By plate type of heat exchanger

Number of Product Trays

144 pieces

Tray Dimension (mm)

580*600mm (height: 25mm) aluminum

Ultimate vacuum level (Pa)

15 Pa

Chamber vacuum rate (atm to 100 Pa)

20 minutes

Refrigeration

Brand option: Hanbell, Refcomb, Frascold, Bitzer.

Refrigerant

R404A/R507

Cooling way

By water cooling or air cooling as option

Cooling water flow rate

50-60t/hr,<28

Vacuum system

Standard Yihua, Yoivac, Option: Ulvac/Edwards

Energy consumption (24hr)

3.23kWh/kg by water cooling

Power requirement

83.9kw, 110-240V single, 240-480V, 3P, 50/60Hz

Defrost way

By water or 60C hot water

Control system

PLC with HMI

Installation area (m2)

100 m2

Chamber over all dimension

6150*2250*2450mm (L*W*H), SUS304

Weight (kg)

11000kg
