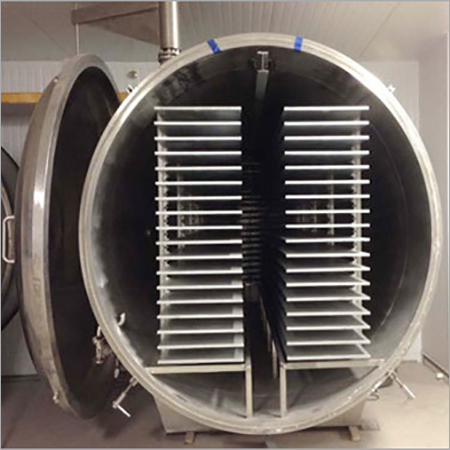

300kg Production Freeze Dryer

300kg Production Freeze Dryer
300kg Production Freeze Dryer
Send Inquiry
Product Code : 20
Product Description

300kg Batch Freeze Dryer

Technical parameters of freeze dryer :

Model

EBT-300

Type

Conductive, all in one

Ice Capacity (kg)

300kg in a 24hr period (vapor condenser capacity)

Vapor Condenser Temperature (℃)

-45℃ (option: -60℃)

Usable Shelf Area (m2)

30 m2

Number of Shelves

13+1, the top plate provides radiant heat only

Shelf Dimension (mm)

2100*1100mm (thickness: 15mm) SUS304

Shelf Spacing (mm)

40-80mm

Shelf Temperature (℃)

-25℃ to 70℃ (option: -45℃ to 70℃)

Shelf Cooling Rate (+40℃ to –25℃)

≤ 60 minutes

Shelf Heating Rate (℃/min) (approx.)

1℃/min, By electricity

Heating/cooling medium

Silicone oil

Heating/cooling exchange

By plate type of heat exchanger

Number of Product Trays

78 pieces

Tray Dimension (mm)

550*700mm (height: 25mm) SUS304

Ultimate vacuum level (Pa)

5 Pa

Chamber vacuum rate (atm to 100 Pa)

≤ 20 minutes

Refrigeration

Standard Xueying/Xuemei, Brand option: Bitzer.

Refrigerant

R404A/R507

Cooling way

By water cooling or air cooling as option

Cooling water flow rate

30-35t/hr,<28℃

Vacuum system

Standard Yoivac, Option: Ulvac/Leybold/Edwards

Energy consumption (24hr)

2.65kWh/kg by water cooling

Power requirement

41.3kw, 110-240V single, 240-480V, 3P, 50/60Hz

Defrost way

By water or 60°C hot water

Control system

PLC with HMI

Installation area (m2)

50 m2

Chamber – over all dimension

4000*2050*2250mm (L*W*H), SUS304

Weight (kg)

7500kg
