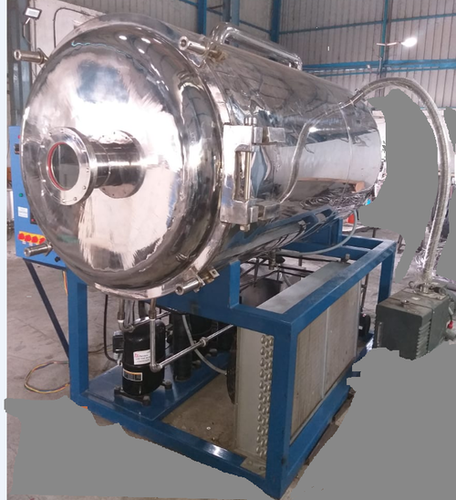

100kg Production Freeze Dryer

100kg Production Freeze Dryer
100kg Production Freeze Dryer
Send Inquiry
Product Code : 21
Product Description

100kg Batch Freeze Dryer

Technical parameters of freeze dryer :

Model

EBT-100

Type

Conductive, all in one

Ice Capacity (kg)

100kg in a 24hr period (vapor condenser capacity)

Vapor Condenser Temperature (℃)

-45℃ (option: -60℃)

Usable Shelf Area (m2)

10.12 m2

Number of Shelves

11+1, the top plate provides radiant heat only

Shelf Dimension (mm)

1150*800mm (thickness: 15mm) SUS304

Shelf Spacing (mm)

40-80mm

Shelf Temperature (℃)

-25℃ to 70℃ (option: -45℃ to 70℃)

Shelf Cooling Rate (+40℃ to –25℃)

≤ 60 minutes

Shelf Heating Rate (℃/min) (approx.)

1℃/min, By electricity

Heating/cooling medium

Silicone oil

Heating/cooling exchange

By plate type of heat exchanger

Number of Product Trays

22 pieces

Tray Dimension (mm)

570*795mm (height: 25mm) SUS304

Ultimate vacuum level (Pa)

5 Pa

Chamber vacuum rate (atm to 100 Pa)

≤ 15 minutes

Refrigeration

Standard Xueying/Xuemei, Brand option: Bitzer.

Refrigerant

R404A/R507

Cooling way

By water cooling or air cooling as option

Cooling water flow rate

10-15t/hr,<28℃

Vacuum system

Standard Yoivac, Option: Ulvac/Leybold/Edwards

Energy consumption (24hr)

3.43kWh/kg by water cooling

Power requirement

17.85kw, 110-240V single, 240-480V, 3P, 50/60Hz

Defrost way

By water or 60°C hot water

Control system

PLC with HMI

Installation area (m2)

35 m2

Chamber – over all dimension

3000*1500*2000mm (L*W*H), SUS304

Weight (kg)

4000kg
